EEW BPY SERIES EXPLOSION PROOF FLUORESCENT LIGHT FITTINGS

EEW BPY SERIES EXPLOSION PROOF FLUORESCENT LIGHT FITTINGS

Technical Parameters
Compliance With: GB 3836.1, GB 3836.2, GB12476.1, GB12476.5, IEC60079-0, IEC60079-1, IEC 61241-0,IEC 61241-1;

Explosion Protection: Ex d IIB T4 Gb (fluorescent lamo); Ex tb IIIC T130℃; Ex db IIb T6 Gb (LED lamp); Ex tb IIIC T80℃ Db Ip66(LED lamp)

Rated Voltage:

Fluorescent Tube: AC 220V, 50Hz;

LED Tube: AC 220V, 50Hz/60Hz;

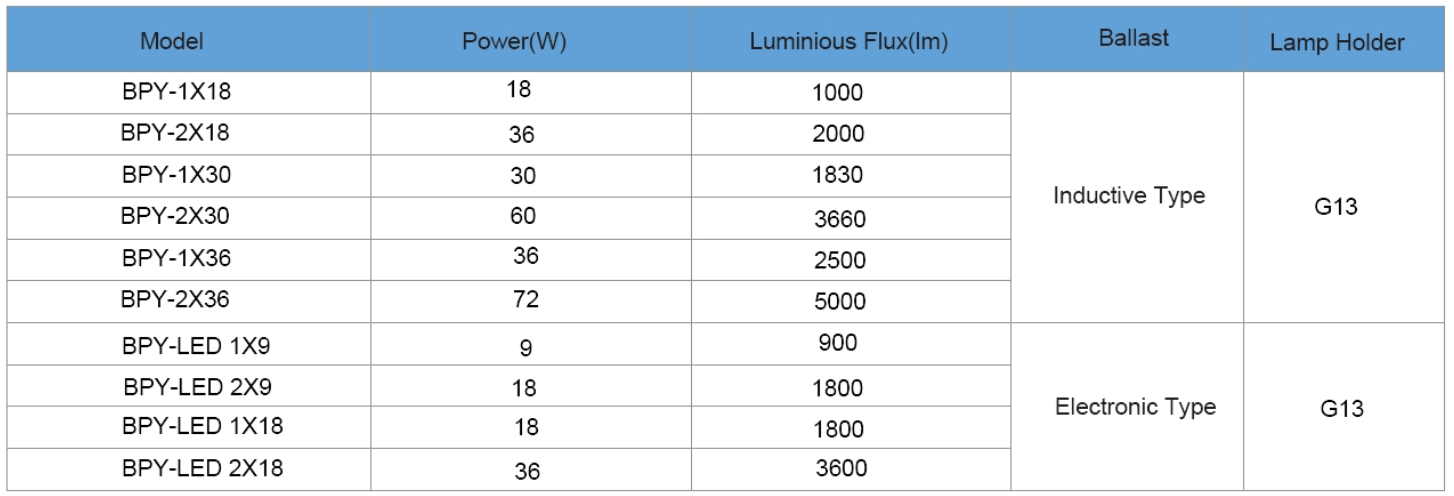

Lamp: T8 Bi-Pin Tubes (1X18W, 2X18W, 1X30W, 2X30W, 1X36W, 2X36W);

LED (1 X 9W; 2 X 9W; 1 X 18W; 2 X 18W)

Ingress Protection: IP66;

Corrosion Resistance: WF1;

Cable Entry: G1/2″

Cable Outer Diameters: Φ6mm~Φ10mm;
